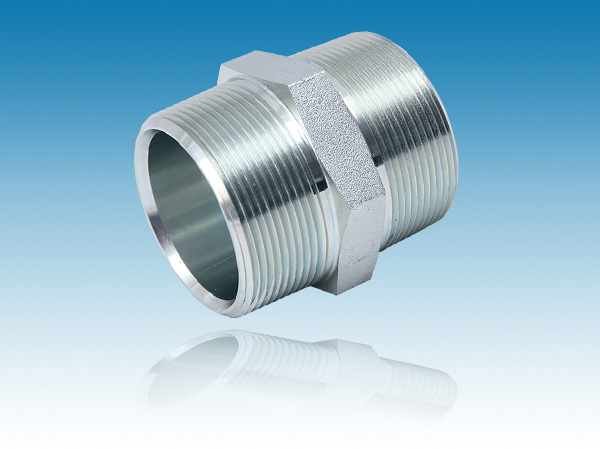

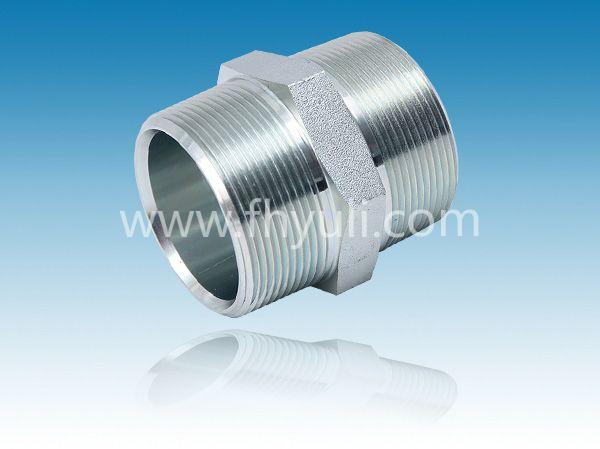

【产品名称】 美制NPTF锥螺纹直管接头 5404系列
【所属分类】 美制NPTF锥螺纹接头 【产品型号】 5404 【产品品牌】 宁吉羽立 NJ 【生产厂家】 宁波市宁吉羽立流体设备有限公司
产品详情
| Product ID | Description | A1 NPTF | A2 NPTF | A1 DRILL | A2 DRILL | L LGTH | C HEX |
| 5404-02-02 | 02MP-02MP Hex Nipple | 1/8-27 | 1/8-27 | 0.188 | 0.188 | 1.060 | 0.438 |
| 5404-04-02 | 04MP-02MP Hex Nipple | 1/4-18 | 1/8-27 | 0.281 | 0.188 | 1.260 | 0.625 |
| 5404-04-04 | 04MP-04MP Hex Nipple | 1/4-18 | 1/4-18 | 0.281 | 0.281 | 1.450 | 0.625 |
| 5404-06-02 | 06MP-02MP Hex Nipple | 3/8-18 | 1/8-27 | 0.406 | 0.188 | 1.260 | 0.750 |
| 5404-06-04 | 06MP-04MP Hex Nipple | 3/8-18 | 1/4-18 | 0.406 | 0.281 | 1.450 | 0.750 |
| 5404-06-06 | 06MP-06MP Hex Nipple | 3/8-18 | 3/8-18 | 0.406 | 0.406 | 1.450 | 0.750 |
| 5404-08-04 | 08MP-04MP Hex Nipple | 1/2-14 | 1/4-18 | 0.531 | 0.281 | 1.700 | 0.875 |
| 5404-08-06 | 08MP-06MP Hex Nipple | 1/2-14 | 3/8-18 | 0.531 | 0.406 | 1.700 | 0.875 |
| 5404-08-08 | 08MP-08MP Hex Nipple | 1/2-14 | 1/2-14 | 0.531 | 0.531 | 1.890 | 0.875 |
| 5404-12-04 | 12MP-04MP Hex Nipple | 3/4-14 | 1/4-18 | 0.719 | 0.281 | 1.770 | 1.125 |
| 5404-12-06 | 12MP-06MP Hex Nipple | 3/4-14 | 3/8-18 | 0.719 | 0.406 | 1.770 | 1.125 |
| 5404-12-08 | 12MP-08MP Hex Nipple | 3/4-14 | 1/2-14 | 0.719 | 0.531 | 1.960 | 1.125 |
| 5404-12-12 | 12MP-12MP Hex Nipple | 3/4-14 | 3/4-14 | 0.719 | 0.719 | 1.960 | 1.125 |
| 5404-16-04 | 16MP-04MP Hex Nipple | 1-11-1/2 | 1/4-18 | 0.938 | 0.281 | 1.960 | 1.375 |
| 5404-16-06 | 16MP-06MP Hex Nipple | 1-11-1/2 | 3/8-18 | 0.938 | 0.406 | 1.960 | 1.375 |
| 5404-16-08 | 16MP-08MP Hex Nipple | 1-11-1/2 | 1/2-14 | 0.938 | 0.531 | 2.150 | 1.375 |
| 5404-16-12 | 16MP-12MP Hex Nipple | 1-11-1/2 | 3/4-14 | 0.938 | 0.719 | 2.150 | 1.375 |
| 5404-16-16 | 16MP-16MP Hex Nipple | 1-11-1/2 | 1-11-1/2 | 0.938 | 0.938 | 2.340 | 1.375 |
| 5404-20-12 | 20MP-12MP Hex Nipple | 1-1/4-11-1/2 | 3/4-14 | 1.250 | 0.719 | 2.260 | 1.750 |
| 5404-20-16 | 20MP-16MP Hex Nipple | 1-1/4-11-1/2 | 1-11-1/2 | 1.250 | 0.938 | 2.450 | 1.750 |
| 5404-20-20 | 20MP-20MP Hex Nipple | 1-1/4-11-1/2 | 1-1/4-11-1/2 | 1.250 | 1.250 | 2.480 | 1.750 |
| 5404-24-12 | 24MP-12MP Hex Nipple | 1-1/2-11-1/2 | 3/4-14 | 1.500 | 0.719 | 2.360 | 2.000 |
| 5404-24-16 | 24MP-16MP Hex Nipple | 1-1/2-11-1/2 | 1-11-1/2 | 1.500 | 0.938 | 2.550 | 2.000 |
| 5404-24-20 | 24MP-20MP Hex Nipple | 1-1/2-11-1/2 | 1-1/4-11-1/2 | 1.500 | 1.250 | 2.580 | 2.000 |
| 5404-24-24 | 24MP-24MP Hex Nipple | 1-1/2-11-1/2 | 1-1/2-11-1/2 | 1.500 | 1.500 | 2.610 | 2.000 |
| 5404-32-12 | 32MP-12MP Hex Nipple | 2-11-1/2 | 3/4-14 | 1.938 | 0.719 | 2.540 | 2.500 |
| 5404-32-16 | 32MP-16MP Hex Nipple | 2-11-1/2 | 1-11-1/2 | 1.938 | 0.938 | 2.730 | 2.500 |
| 5404-32-20 | 32MP-20MP Hex Nipple | 2-11-1/2 | 1-1/4-11-1/2 | 1.938 | 1.250 | 2.760 | 2.500 |
| 5404-32-24 | 32MP-24MP Hex Nipple | 2-11-1/2 | 1-1/2-11-1/2 | 1.938 | 1.500 | 2.790 | 2.500 |
| 5404-32-32 | 32MP-32MP Hex Nipple | 2-11-1/2 | 2-11-1/2 | 1.938 | 1.938 | 2.820 | 2.500 |
| 5404-40-40 | 40MP-40MP Hex Nipple | 2 1/2-8 | 2 1/2-8 | 2.318 | 2.318 | 3.950 | 3.000 |
