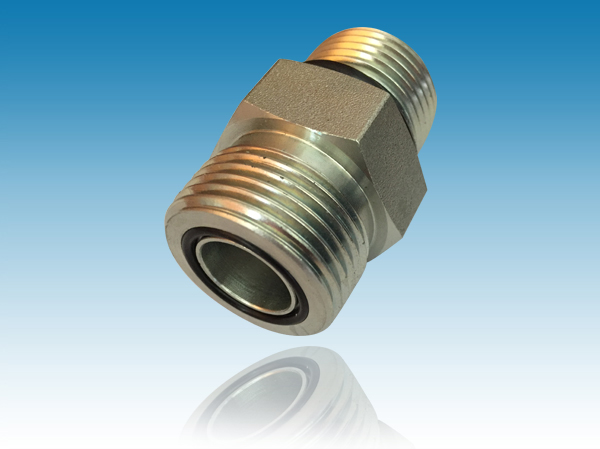

【产品名称】 美制ORFS螺纹O型圈平面密封管接头 FS6400系列
【所属分类】 美制螺纹O型圈密封接头 【产品型号】 FS6400 【产品品牌】 宁吉羽立 NJ 【生产厂家】 宁波市宁吉羽立流体设备有限公司
产品详情
品牌：NJ
型号：FS6400
材质：碳钢
规格：直管接头
加工定制是
适用范围：机械设备
螺纹类型直螺纹
链接方式螺纹
| PART NO SIZE | TUBE O.D. | A1 THREAD | B THREAD | A DRILL | B DRILL | L LGTH | H HEX |
| FS6400-04-03-O | 1/4 | 9/16-18 | 3/8-24 | 0.172 | 0.118 | 1.074 | 0.625 |
| FS6400-04-04-O | 1/4 | 9/16-18 | 7/16-20 | 0.172 | 0.172 | 1.133 | 0.625 |
| FS6400-04-05-O | 1/4 | 9/16-18 | 1/2-20 | 0.172 | 0.236 | 1.163 | 0.75 |
| FS6400-04-06-O | 1/4 | 9/16-18 | 9/16-18 | 0.172 | 0.264 | 1.202 | 0.75 |
| FS6400-04-08-O | 1/4 | 9/16-18 | 3/4-16 | 0.172 | 0.378 | 1.321 | 0.875 |
| FS6400-04-10-O | 1/4 | 9/16-18 | 7/8-14 | 0.172 | 0.484 | 1.48 | 1.062 |
| FS6400-04-12-O | 1/4 | 9/16-18 | 1-1/16-12 | 0.172 | 0.609 | 1.638 | 1.25 |
| FS6400-06-03-O | 3/8 | 11/16-16 | 3/8-24 | 0.264 | 0.118 | 1.284 | 0.75 |
| FS6400-06-04-O | 3/8 | 11/16-16 | 7/16-20 | 0.264 | 0.172 | 1.343 | 0.75 |
| FS6400-06-05-O | 3/8 | 11/16-16 | 1/2-20 | 0.264 | 0.236 | 1.213 | 0.75 |
| FS6400-06-06-O | 3/8 | 11/16-16 | 9/16-18 | 0.264 | 0.264 | 1.252 | 0.75 |
| FS6400-06-08-O | 3/8 | 11/16-16 | 3/4-16 | 0.264 | 0.378 | 1.381 | 0.875 |
| FS6400-06-10-O | 3/8 | 11/16-16 | 7/8-14 | 0.264 | 0.484 | 1.53 | 1.062 |
| FS6400-06-12-O | 3/8 | 11/16-16 | 1-1/16-12 | 0.264 | 0.609 | 1.688 | 1.25 |
| FS6400-06-16-O | 3/8 | 11/16-16 | 1-5/16-12 | 0.264 | 0.811 | 1.728 | 1.5 |
| FS6400-08-04-O | 1/2 | 13/16-16 | 7/16-20 | 0.378 | 0.172 | 1.433 | 0.875 |
| FS6400-08-06-O | 1/2 | 13/16-16 | 9/16-18 | 0.378 | 0.264 | 1.472 | 0.875 |
| FS6400-08-08-O | 1/2 | 13/16-16 | 3/4-16 | 0.378 | 0.378 | 1.441 | 0.875 |
| FS6400-08-10-O | 1/2 | 13/16-16 | 7/8-14 | 0.378 | 0.484 | 1.59 | 1.062 |
| FS6400-08-12-O | 1/2 | 13/16-16 | 1-1/16-12 | 0.378 | 0.609 | 1.748 | 1.25 |
| FS6400-08-16-O | 1/2 | 13/16-16 | 1-5/16-12 | 0.378 | 0.811 | 1.788 | 1.5 |
| FS6400-10-06-O | 5/8 | 1-14 | 9/16-18 | 0.484 | 0.264 | 1.642 | 1.062 |
| FS6400-10-08-O | 5/8 | 1-14 | 3/4-16 | 0.484 | 0.378 | 1.781 | 1.062 |
| FS6400-10-10-O | 5/8 | 1-14 | 7/8-14 | 0.484 | 0.484 | 1.7 | 1.062 |
| FS6400-10-12-O | 5/8 | 1-14 | 1-1/16-12 | 0.484 | 0.609 | 1.858 | 1.25 |
| FS6400-10-14-O | 5/8 | 1-14 | 1-3/16-12 | 0.484 | 0.709 | 1.89 | 1.375 |
| FS6400-12-06-O | 3/4 | 1-3/16-12 | 9/16-18 | 0.609 | 0.264 | 1.772 | 1.25 |
| FS6400-12-08-O | 3/4 | 1-3/16-12 | 3/4-16 | 0.609 | 0.378 | 1.911 | 1.25 |
| FS6400-12-10-O | 3/4 | 1-3/16-12 | 7/8-14 | 0.609 | 0.484 | 1.99 | 1.25 |
| FS6400-12-12-O | 3/4 | 1-3/16-12 | 1-1/16-12 | 0.609 | 0.609 | 1.918 | 1.25 |
| FS6400-12-16-O | 3/4 | 1-3/16-12 | 1-5/16-12 | 0.609 | 0.811 | 1.958 | 1.5 |
| FS6400-12-20-O | 3/4 | 1-3/16-12 | 1-5/8-12 | 0.609 | 1.024 | 2.038 | 1.875 |
| FS6400-16-08-O | 1 | 1-7/16-12 | 3/4-16 | 0.811 | 0.378 | 1.961 | 1.5 |
| FS6400-16-10-O | 1 | 1-7/16-12 | 7/8-14 | 0.811 | 0.484 | 2.04 | 1.5 |
| FS6400-16-12-O | 1 | 1-7/16-12 | 1-1/16-12 | 0.811 | 0.609 | 2.138 | 1.5 |
| FS6400-16-14-O | 1 | 1-7/16-12 | 1-3/16-12 | 0.811 | 0.709 | 1.948 | 1.5 |
| FS6400-16-16-O | 1 | 1-7/16-12 | 1-5/16-12 | 0.811 | 0.811 | 1.978 | 1.5 |
| FS6400-16-20-O | 1 | 1-7/16-12 | 1-5/8-12 | 0.811 | 1.024 | 2.058 | 1.875 |
| FS6400-20-16-O | 1-1/4 | 1-11/16-12 | 1-5/16-12 | 1.024 | 0.811 | 2.278 | 1.75 |
| FS6400-20-20-O | 1-1/4 | 1-11/16-12 | 1-5/8-12 | 1.024 | 1.024 | 2.058 | 1.875 |
| FS6400-20-24-O | 1-1/4 | 1-11/16-12 | 1-7/8-12 | 1.024 | 1.26 | 2.128 | 2.125 |
| FS6400-24-20-O | 1-1/2 | 2-12 | 1-5/8-12 | 1.26 | 1.024 | 2.348 | 2.125 |
| FS6400-24-24-O | 1-1/2 | 2-12 | 1-7/8-12 | 1.26 | 1.26 | 2.128 | 2.125 |
| FS6400-24-32-O | 1-1/2 | 2-12 | 2-1/2-12 | 1.26 | 1.578 | 2.136 | 2.75 |
| FS6400-32-32-O | 2 | 2-1/2-12 | 2-1/2-12 | 1.772 | 1.578 | 2.313 | 2.75 |
